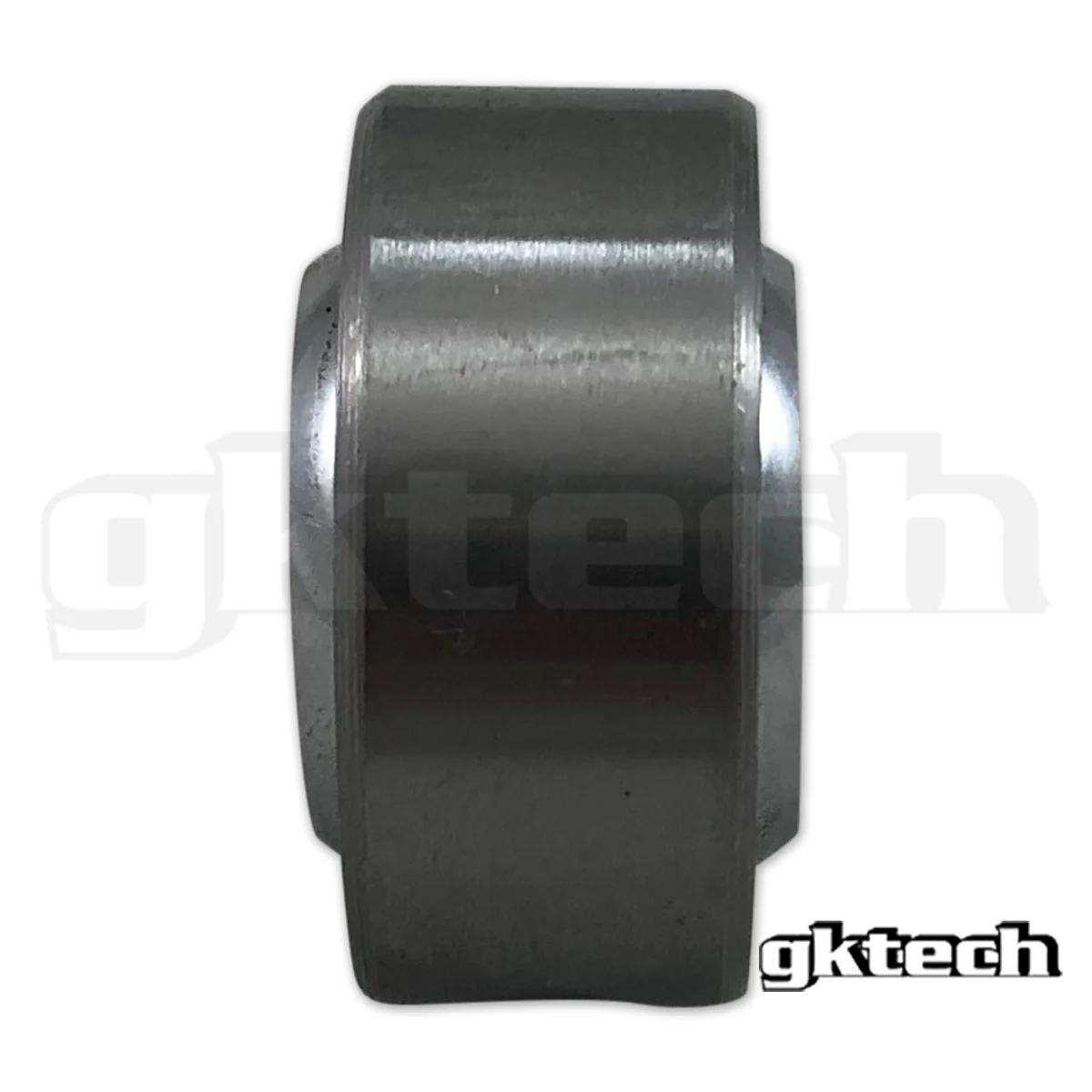

Replacement COM9T bearing
Replacement COM9T bearing Used in the following GKTECH products:
V1 Z33X-FLCA
COM9T
| IMPERIAL | METRIC |
|---|---|
| HOUSING OUTER DIAMTER | HOUSING OUTER DIAMTER |
| 1.0937 in | 27.7800 mm |
| HOUSING WIDTH | HOUSING WIDTH |
| 0.4370 in | 11.0998 mm |
| BALL WIDTH | BALL WIDTH |
| 0.5620 in | 14.2748 mm |
| BALL BORE SIZE | BALL BORE SIZE |
| 0.5625 in | 14.2875 mm |
| BEARING MISALIGNMENT ANGLE | BEARING MISALIGNMENT ANGLE |
| 9.5 degrees | 9.5 degrees |
| ULT. Static Radial Load (lbs) | ULT. Static Radial Load (kg) |
| 24,945 lbs | 11,315 kg |
| BEARING MATERIAL | BEARING MATERIAL |
| STEEL | STEEL |
| LUBRICATION | LUBRICATION |
| PTFE lined | PTFE lined |
